ECH A-0823

Building Hardware Exit Hardware Hinge UL Listed Fire Rated Door Closer

Advanced function of ECH door closer:

● Build-in hold function: stop at 75°

● Dual valves, closing and latching speed controlled by two separate regulating valves.

● Two speed valves: Closing speed valve 180°-15°, Latching speed valve 15°-0°

● Back check function: provide a temporary resistance between 70° to Maximum opening angle in door opening cycle to help prevent damage to door and or wall in case of the door opens with excessive force

● Delay Action: an added adjustment to delay the door closing from Maximum opening down to approximated 65°, convenience for the handicapped and elderly

● Barrier Free: meet ADA regulation engineered with reduced spring power to provide easier opening for handicapped and elderly

Power Adjustable Valve Clockwise: increase Power Counterclockwise: decrease Power

Building Hardware Exit Hardware Hinge UL Listed Fire Rated Door Closer

Aluminium Alloy Door Closer is a popular door closer it is durable and easy to use. As a professional door closer manufacturer in China, we provide customers various quality Fire Rated Door Closer and they apply to different commercial of doors. The Metal Door Closer is one kind of our Aluminium Alloy Door Closer. The material of UL Door Closer is cast aluminum ally, so it can keep the original shape very well. The Aluminium Alloy UL Door Closer can also keep smooth for a long time, not easy to broken, these two characteristics greatly reduce the possibility of Fire Rated UL Door Closer become old and bad. The Fire Rated Metal Door Closer can also keep long-term lubrication, make you convenient to open and close the door.The Fire Rated Door Hardware is smooth and easy to install and use, it can bring you high security and beauty. For Further information, please contact us.

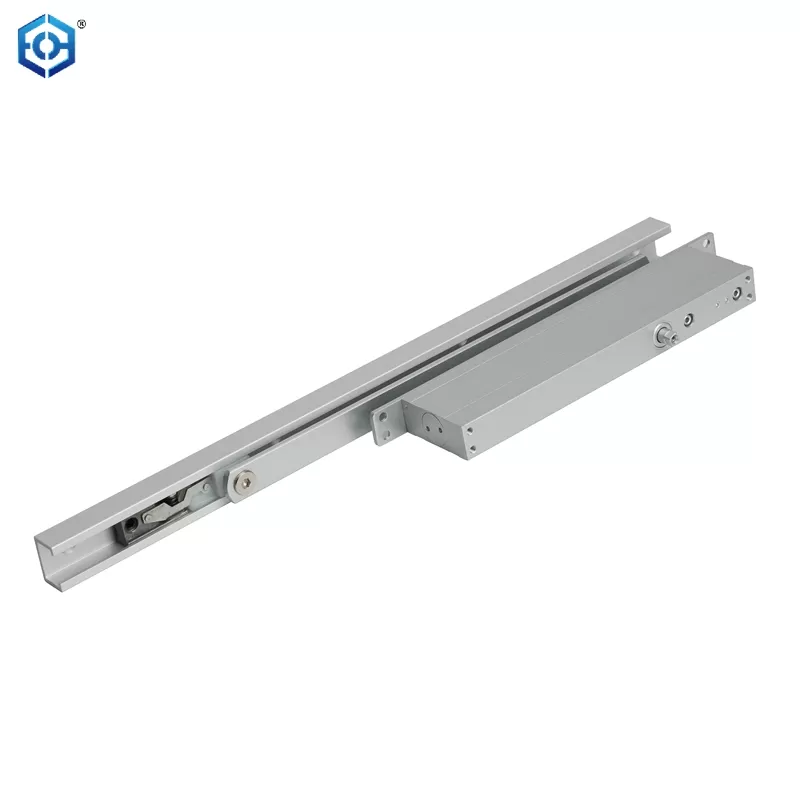

Ultrathin Aluminum Anti-Fire Hydraulic 23MM Slim Concealed Door Closer Bearing 25-45kg

• Concealed with Sliding Track Arm

• Power Size:EN 2

• Max Opening 110°

• Door Width:850mm

• Ultra-thin body Thickness:23 mm

• Door Weight:25-45kg

• Function Optional:Rail Hold Open

Ultrathin Aluminum Anti-Fire Hydraulic 23MM Slim Concealed Door Closer Bearing 25-45kg

In order to make our products more competitive and enhance customers confidence, we have obtained the following product quality certifications:

UL Certificated R41359 and CE for door closer,

UL Certificated R41361 ,SA46258 for panic exit device,

UL Certificated R41383 and EN1935:2002 for Hinges,

UL Certificated R41710 for American and lock，

CE for Mortise lock，

EN1906:2012 for Handles,

EN12209:2016 for Locks and so on.
