Door Drop Seal

Home / Door Hardware / Door Drop Seal / Automatic Door Bottom Seal Heavy Duty Acoustic Door Sweep with Neoprene Bulb Bottom Door Seal

ADDS-E

Automatic Door Bottom Seal Heavy Duty Acoustic Door Sweep with Neoprene Bulb Bottom Door Seal

Type: Door Drop Seal
Brand Name:ECH
Place of Origin:Jiangmen China (Mainland)
Name:Door Drop Seal
Model Number:ADDS-E
Material:Aluminum
MOQ:500 PCS
Size:18X20mm
Finish & Size:  Silver/Black
Standard export package:White box, Soft foam plastic bag or to order
Delivery :30 working days



Introduction

The Fire &Acoustic Door Drop Seals are designed for the gap between the door bottom and floor,it provides an excellent barrier to airborne sound and helping to ensure that the acoustic attenuation provided by a door set.

The Fire &Acoustic Door Drop Seals control the movement of the inner sealing strip through mechanical movement.When the door is closed,internal sealing strip will be down automatically to performance the tight sealing effects.When the door is opened,the inner seals will be automatically rise from the floor.Some of this serious seal can be fully hidden in the door bottom groove,the door beautiful surface will not be affected by installation of the seal.



Type: Door Drop Seal
Brand Name:ECH
Place of Origin:Jiangmen China (Mainland)
Name:Door Drop Seal
Model Number:ADDS-E
Material:Aluminum
MOQ:500 Sets
Size:18X20mm
Finish & Size:  Silver/Black
Standard export package:White box, Soft foam plastic bag or to order
Delivery :30 working days
Product NameAcoustic Door Drop Seal
MaterialAluminium Alloy + EPDM Rubber Seal

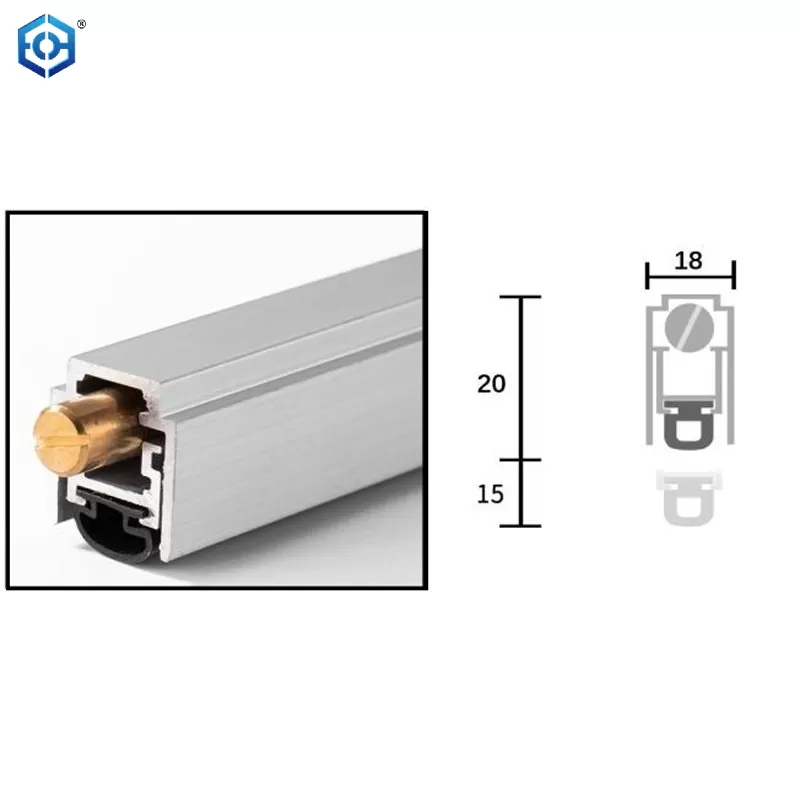

Dimension(mm)18x20
Gap(mm)Min. 3 mm / max. 13 mm
Standard Length (mm)        600mm,820mm,920mm, 1070mm, 1220mm
Seal ColorBlack,Grey

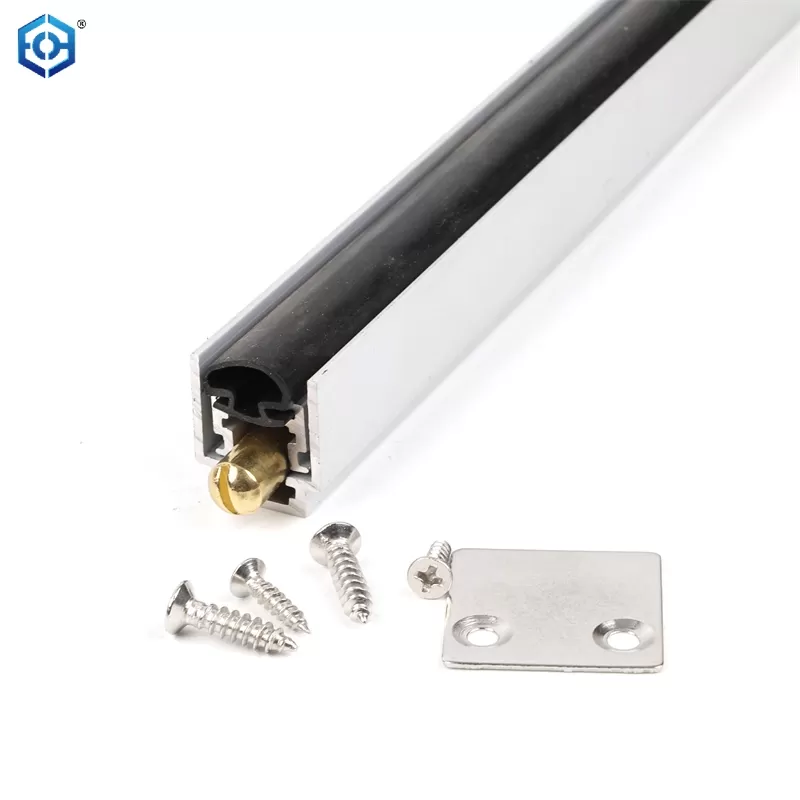

FixingConcealed,with supporting stainless steel escutcheon plates


Cutting back length

Nominal Seal Lengths               Cuts back to
1220mm1070
1070mm920
920mm820
820mm600
60mm380



Size

Automatic Door Bottom Seal Heavy Duty Acoustic Door Sweep with Neoprene Bulb Bottom Door Seal
