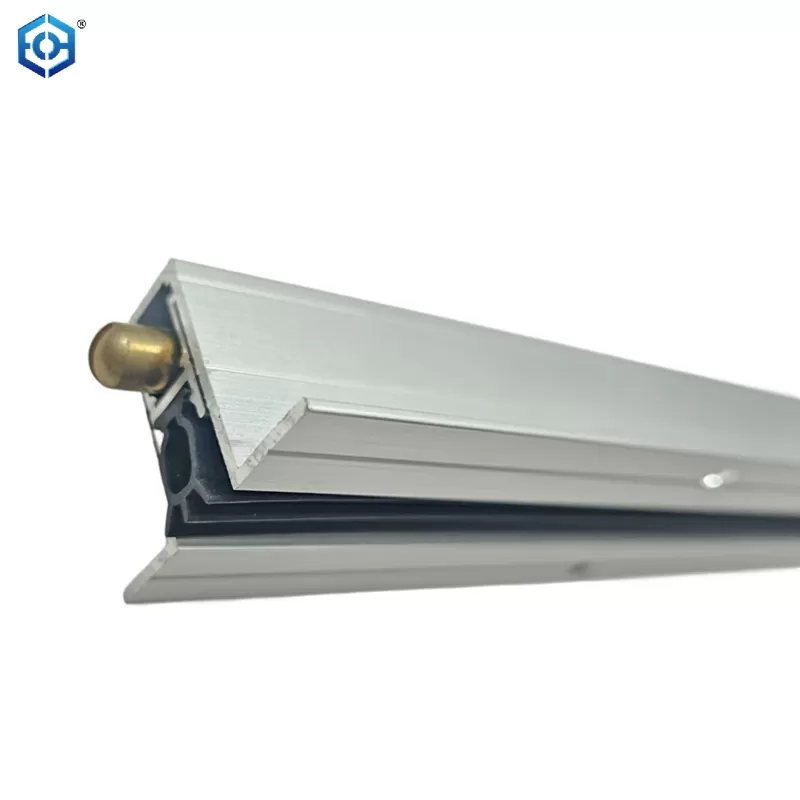

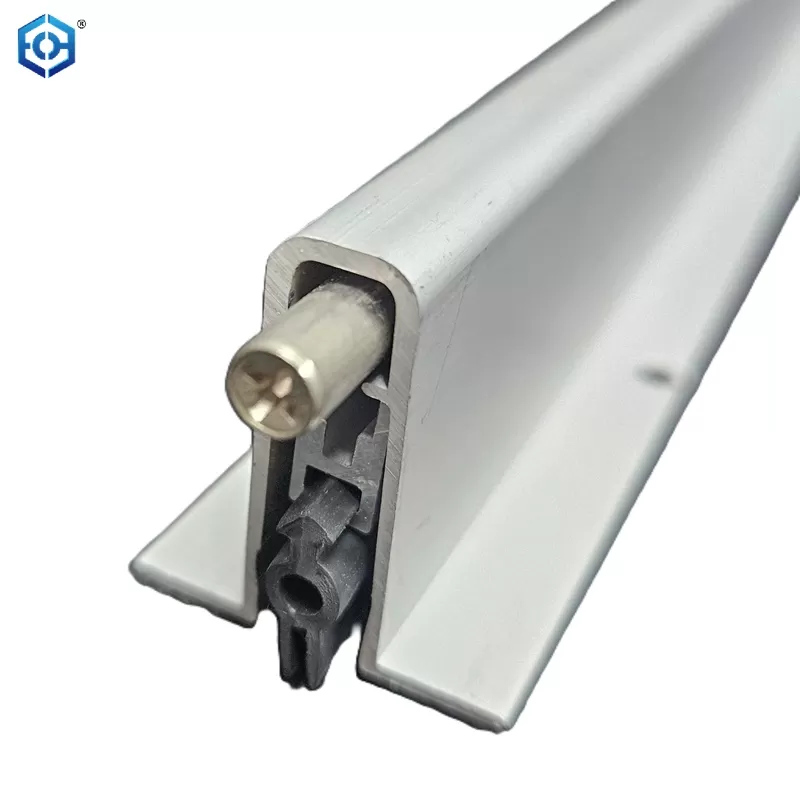

Full Mortise Acoustic Automatic Door Bottom
| Type: | Door Drop Seal |
| Brand Name: | ECH |
| Place of Origin: | Jiangmen China (Mainland) |
| Name: | Door Drop Seal |
| Model Number: | ADDS-B |
| Material: | Aluminum |
| MOQ: | 500 PCS |
| Size: | 34X14mm |
| Finish & Size: | Silver/Black |
| Standard export package: | White box, Soft foam plastic bag or to order |
| Delivery : | 30 working days |
Introduction
The Fire &Acoustic Door Drop Seals are designed for the gap between the door bottom and floor,it provides an excellent barrier to airborne sound and helping to ensure that the acoustic attenuation provided by a door set.
The Fire &Acoustic Door Drop Seals control the movement of the inner sealing strip through mechanical movement.When the door is closed,internal sealing strip will be down automatically to performance the tight sealing effects.When the door is opened,the inner seals will be automatically rise from the floor.Some of this serious seal can be fully hidden in the door bottom groove,the door beautiful surface will not be affected by installation of the seal.
| Type: | Door Drop Seal |
| Brand Name: | ECH |
| Place of Origin: | Jiangmen China (Mainland) |
| Name: | Door Drop Seal |
| Model Number: | ADDS-B |
| Material: | Aluminum |
| MOQ: | 500 Sets |
| Size: | 34X14mm |
| Finish & Size: | Silver/Black |
| Standard export package: | White box, Soft foam plastic bag or to order |
| Delivery : | 30 working days |
| Product Name | Acoustic Door Drop Seal |
| Material | Aluminium Alloy + EPDM Rubber Seal |

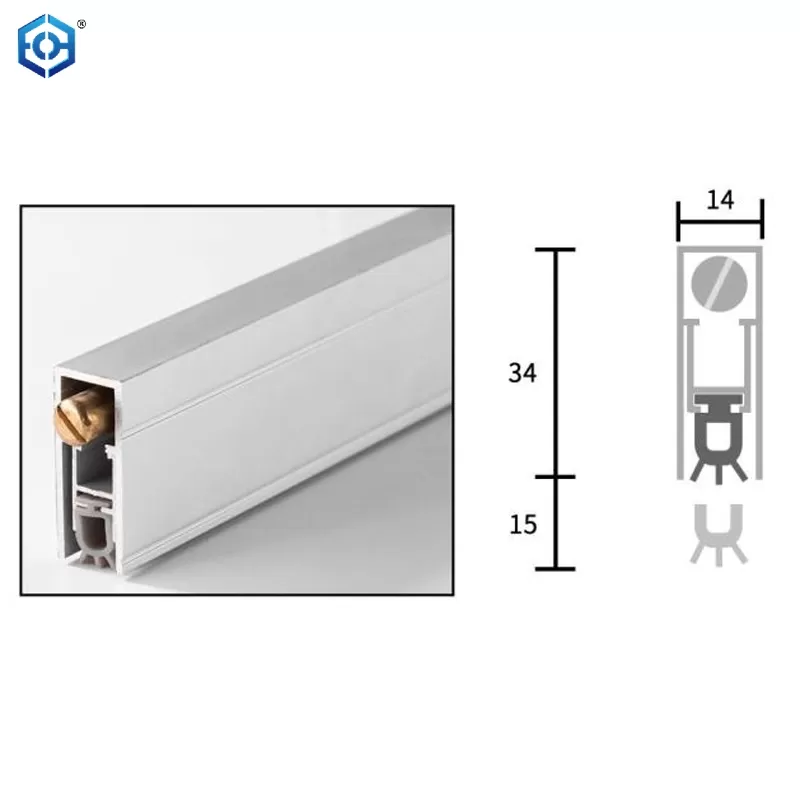

| Dimension(mm) | 14x34 |
| Gap(mm) | Min. 3 mm / max. 13 mm |
| Standard Length (mm) | 600mm,820mm,920mm, 1070mm, 1220mm |
| Seal Color | Black,Grey |
| Fixing | Concealed,with supporting stainless steel escutcheon plates |
Cutting back length
| Nominal Seal Lengths | Cuts back to |
| 1220mm | 1070 |
| 1070mm | 920 |
| 920mm | 820 |
| 820mm | 600 |
| 60mm | 380 |
