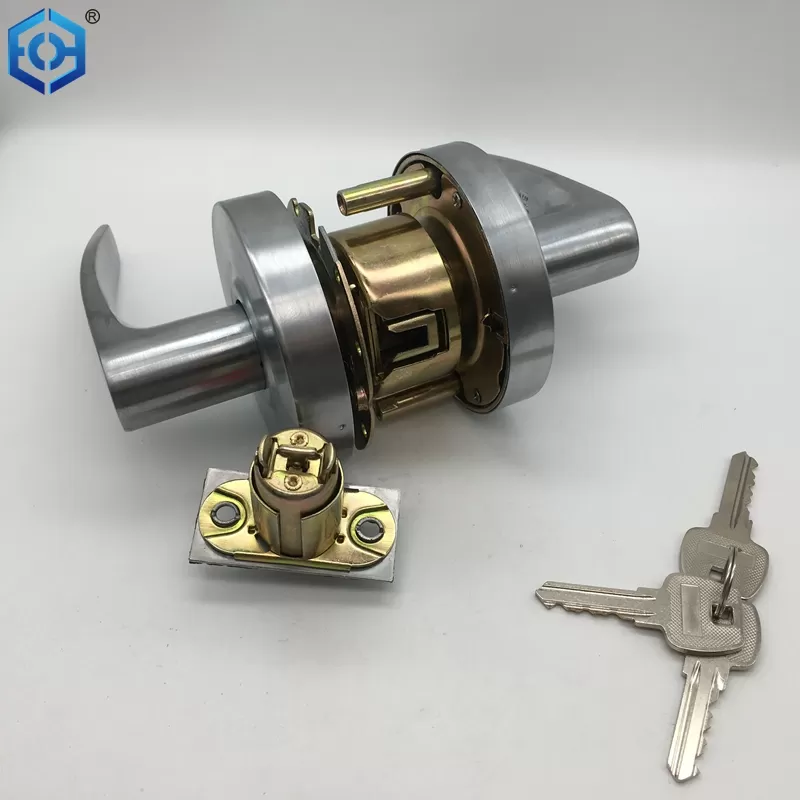

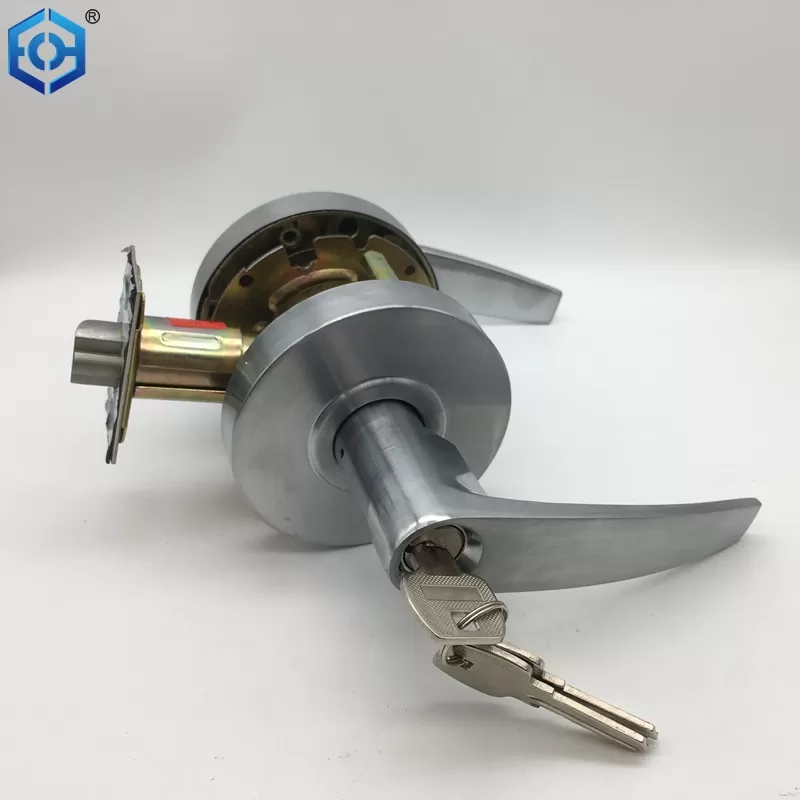

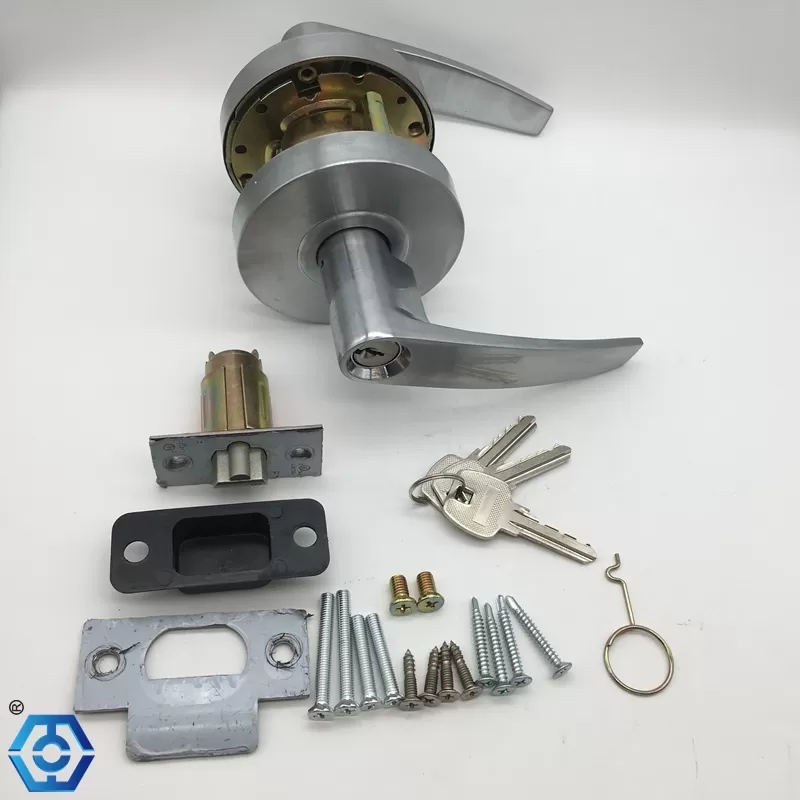

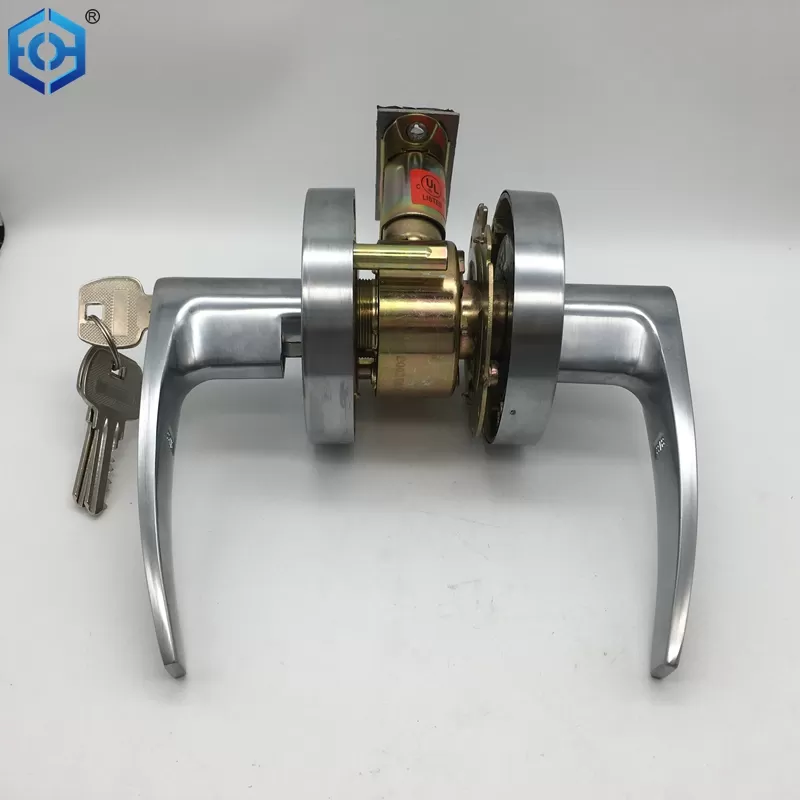

ANSI Grade 2 American Style Lever Door Handle Leverset Lock cylindrical lockset
Door Prep: Cross bore 2-1/8",Edge bore 1"Latch face 1"x2-1/4"
BACKSET: Adjustable 2-3/8"or 2-3/4".
Door Thickness:Adjustable 1-3/8"--2"
Cylinder:5-Pin or 6-Pin removable core.Schiage *C*keyway or Kwikset And other options available.
Face plates:1"x2-1/4"square corner.Standard.Round corner and other Options available.
Strlkes:2-1/4"square corner standard.Standard corner and other options Available.
Bolt: 1"throw.Nickel plated.
ANSI/BHMA: A 156.2 Grade2.
Introduction
Key Features and Functions
Door Prep: Cross bore 2-1/8",Edge bore 1"Latch face 1"x2-1/4"
BACKSET: Adjustable 2-3/8"or 2-3/4".
Door Thickness:Adjustable 1-3/8"--2"
Cylinder:5-Pin or 6-Pin removable core.Schiage *C*keyway or Kwikset And other options available.
Face plates:1"x2-1/4"square corner.Standard.Round corner and other Options available.
Strlkes:2-1/4"square corner standard.Standard corner and other options Available.
Bolt: 1"throw.Nickel plated.
ANSI/BHMA: A 156.2 Grade2.
| Type: | door lock |
| Brand Name: | ECH |
| Place of Origin: | Jiangmen China (Mainland) |
| Name: | fire door lock |
| Model Number: | EC8681 |
| Material: | Stainless Steel/zinc alloy |
| MOQ: | 500 Sets |
| Size: | 75x130mm |
| Finish & Size: | SSS/PSS/Black |

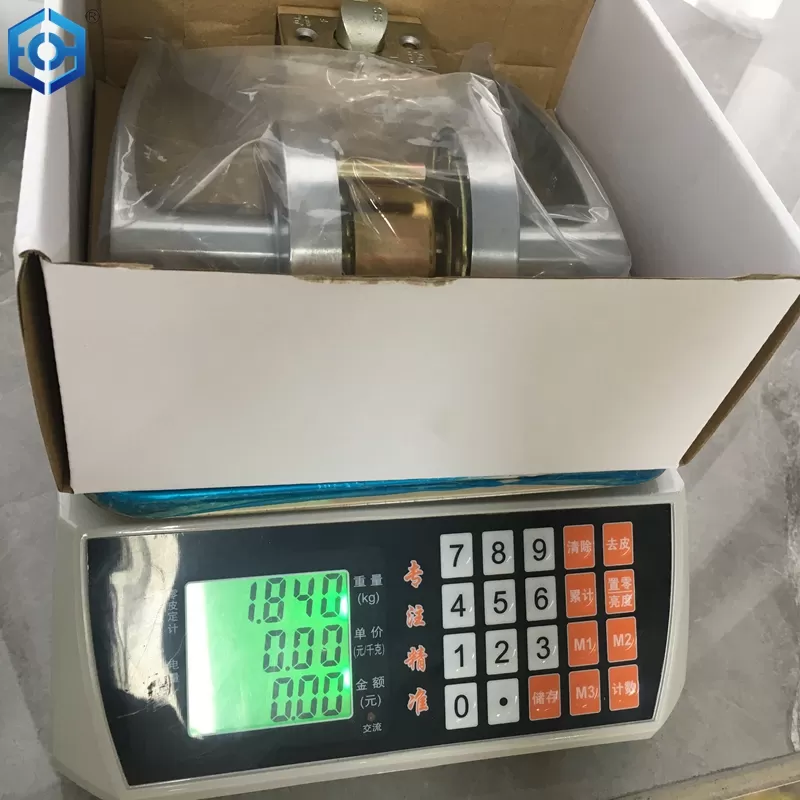

| Standard export package: | White box, Soft foam plastic bag or to order |
| Delivery : | 30 working days |
Certificate
Certificate
Exhibition
Our Services
In order to make our products more competitive and enhance customers confidence, we have obtained the following product quality certifications:
UL Certificated R41359 and CE for door closer,
UL Certificated R41361 ,SA46258 for panic exit device,
UL Certificated R41383 and EN1935:2002 for Hinges,
UL Certificated R41710 for American door lock,
CE for mortise lock,
EN1906:2012 for Handles,
EN12209:2016 for Locks and so on.
