EC8400

Privacy Satin Nickel ANSI Grade 2 Commercial Door Locks

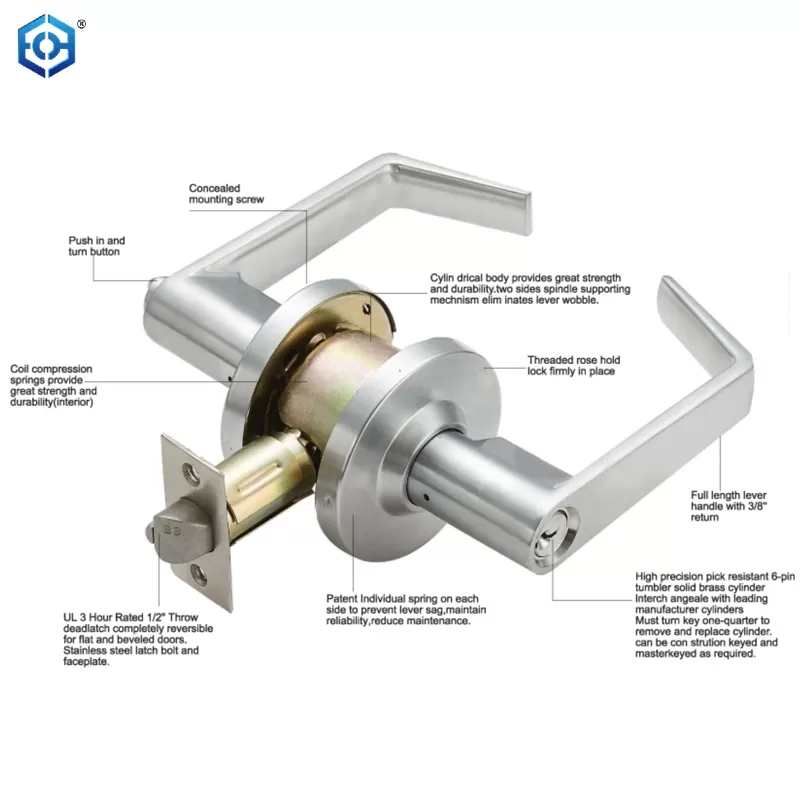

HEAVY DUTY COMMERCIAL LEVER SERIES-GRADE 2

Special Design for Heavy Duty Locks Conforms with ANSI A156.2 series 450,000 Grade 2.

● Door Prep:Cross bore 2-1/8"(54mm),Edge bore 1"(25mm).

● Door Thick:1-3/8"(35mm)to 1-3/4"(50mm)thickness door Standard.

● Backset:2-3/4"(70mm)standard.2-3/8"(60mm)optional.

● Latch:1/2"throw dead latch and spring latch.

● Faceplate:Square comer 1-1/8"2-1/4"(28.5×57mm)standard,1"2-1/4"(25.4×57mm)optional.

● Through Bolts:Removable through bolts.

● Clutch:Clutch(Free Wheel)function available for ET(Entry),ST(Storage)function.

● Cylinder:6 pin removable core,Schlage C keyway,(Kwikset,C4 keyway optional).

● Strikes:T-Strike 2-3/4"×2-3/4"(44×70mm)standard,ASA-Strike 4-7/8"×1-1/4"(123.8x31.7mm)optional.

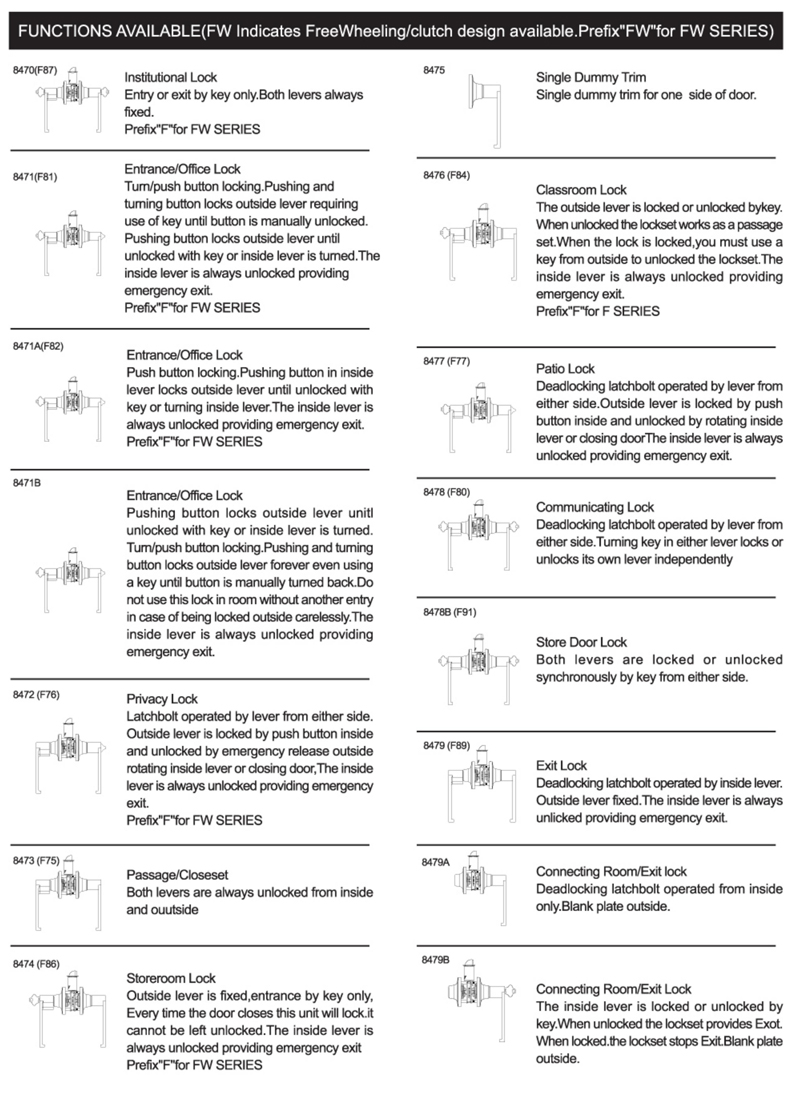

● Function:DM(0:Dummy),ET(1:Entrance),BK(2:Privacy),PS(3:Passage),ST(:Storeroom),CL(5:Classroom),CM(8:Communicaton),EX(9:Exit).
