Home / Door Hardware / Mortise Lock / Bifold Door Lock 90 Degree Turn 8mm Rod Lock Accessories

MLE2224

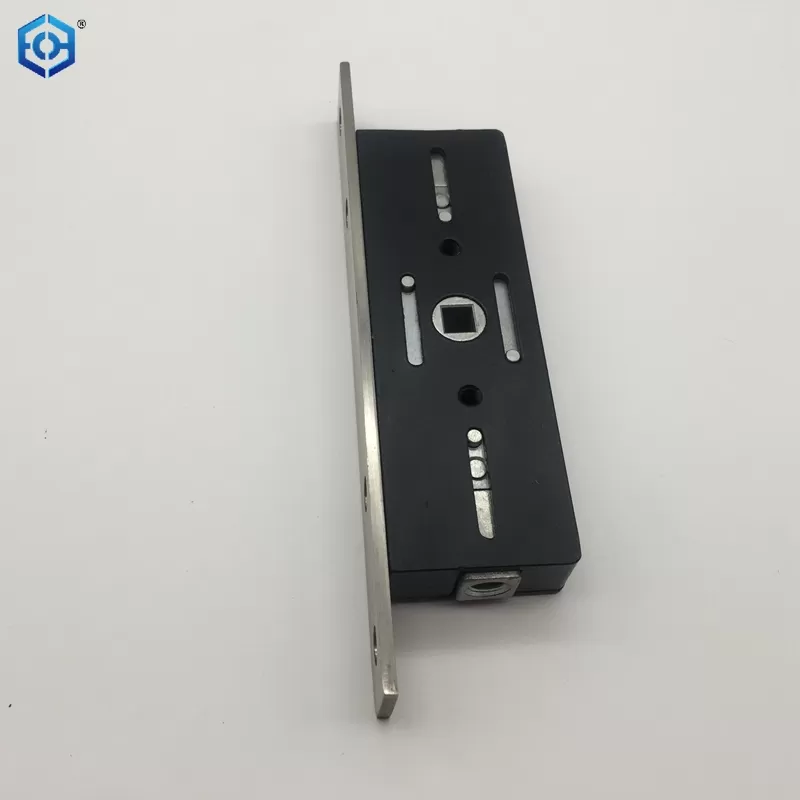

Bifold Door Lock 90 Degree Turn 8mm Rod Lock Accessories

1. Backset:24mm

2. Lock shell:zinc steel SECC,thickness:1.5mm

3. Dead bolt:SUS304(Durability: 50,000 test cycles),two lock

4. Front Plate:SUS304,Size:235*24/22/20mm,thickness:3mm,Strike plate:SUS304,thickness:1.5mm

5. Performance in line with European standard EN12209,size in accordance with European standard DIN18251, CE certification level (EN12209): 3x910G3BC00

Fire resistance test (standard EN1634-1): 240 minutes (steel door),wooden door 120 minutes (wooden door)


Introduction

Bifold Door Lock 90 Degree Turn 8mm Rod Lock Accessories


▶Technical Specifications


1. Backset:24mm

2. Lock shell:zinc steel SECC,thickness:1.5mm

3. Latch bolt:SUS304(Durability: 200,000 test cycles, 120N side pressure)

4. Insurance bolt:SUS304

5. Front Plate:SUS304,Size:235*24/22/20mm,thickness:3mm,Strike plate:SUS304,thickness:1.5mm

6. Spindle:SUS304,Hole size:8*8mm

7. Performance in line with European standard EN12209,size in accordance with European standard DIN18251, CE certification level (EN12209):3x910G2BB20

Fire resistance test (standard EN1634-1): 240 minutes (steel door),wooden door 120 minutes (wooden door)



Mortise Deadlock


Our European standard mortise locks are designed for high-frequency use and potential misuse applications (Grade 3 category), delivering exceptional performance, safety, and functionality. Carefully crafted from high-quality materials, these mortise locks ensure durability and reliability even in demanding environments. Our locks are suitable for both wooden and steel fire doors, ensuring your fire safety needs.

The mortise deadbolt lock features only a deadbolt and no latch bolt, providing a deadbolt function operated by the profile cylinder. It is designed for use in storage rooms, utility shaft doors, and other areas where a straightforward locking mechanism is required. This euro profile cylinder mortice deadlock is available with either a large or small locking plate to suit your specific needs.



Features

  • CE Certified

  • Tested for 50,000 cycles, low maintenance, extended service life

  • Suitable for wooden and steel fire doors

  • Forend and strike plate available in round and square head styles

  • Compatible with euro profile cylinders

  • High-quality satin stainless steel finish, additional surface finish options available




Specifications:


Size
Backset

24mm

Center distance
0mm
Major parts

Forend

SS304, Height: 170mm, Width: 22mm,

Thickness: 3mm

DeadboltSS304, 1 throw, Projection: 20mm
Follower

SS304, Square hole: 7*7mm

Locking plate

SS304, Thickness: 3mm

Case

SECC, Thickness: 3m

Standard
EN12209, EN1634-1, DIN18251
Certification

CE (Intertek)

3 X 9 1 0 G - B 0 2 0

CE (Warrington)3 X 8 1 0 G - H G 2 0

Fire test (EN1634-1)

Steel fire door: 240mins

Timber fire door: 90mins

(Intertek)

Steel fire door: 240mins

Timber fire door: 30/60/90/120mins

(Warrington)

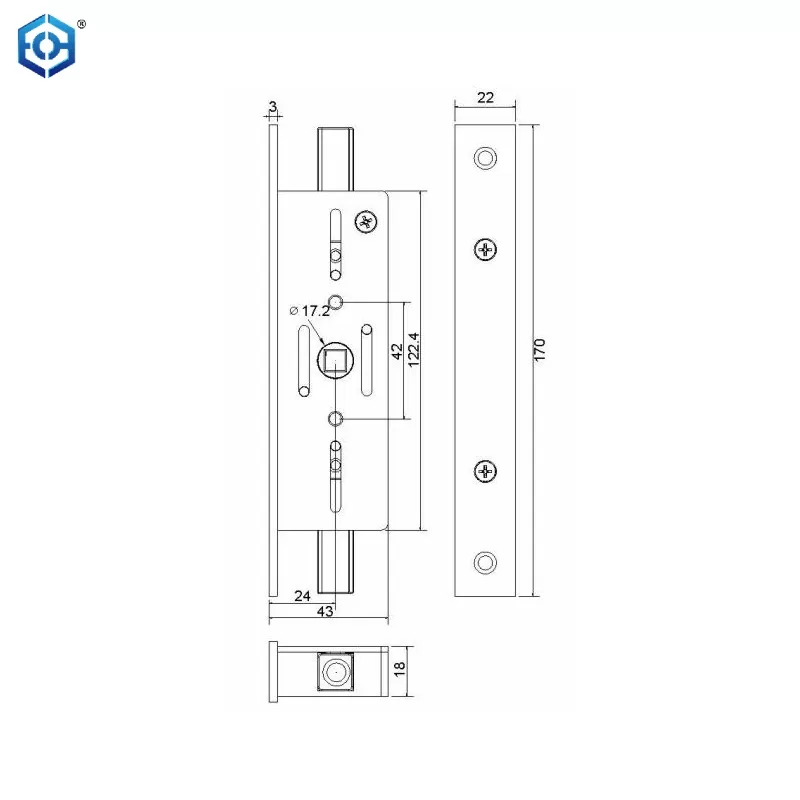

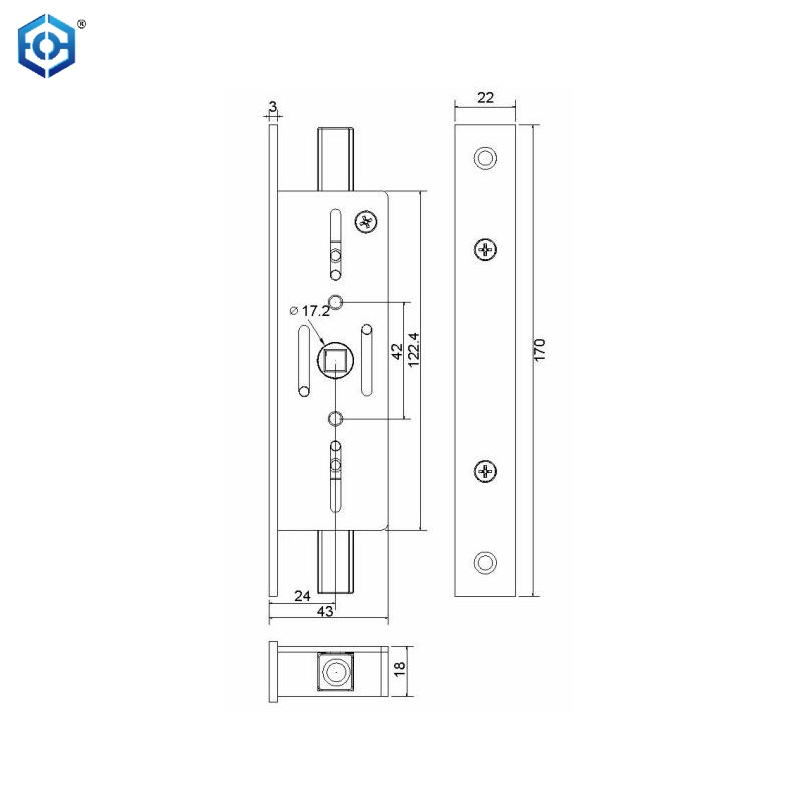

Size

Bifold Door Lock 90 Degree Turn 8mm Rod Lock Accessories


Certification

Stainless Steel European Indoor Door Lock Body 6072 Mortise Door Lock
