Mortise Lock

Home / Door Hardware / Mortise Lock / EN12209 CE Anti-thrust Night Latch Mortise Lock with Escape Function

ECH-5572ZN ECH-J6072ZN ECH-J6572ZN

EN12209 CE Anti-thrust Night Latch Mortise Lock with Escape Function

1. Distance:72mm,Backset:55/60/65mm

2. Lock shell:zinc steel SECC,thickness:1.5mm

3. Latch bolt:SUS304(Durability: 200,000 test cycles, 120N side pressure)

4. Insurance bolt:SUS304

5. Front Plate:SUS304,Size:235*24/22/20mm,thickness:3mm,Strike plate:SUS304,thickness:1.5mm

6. Spindle:SUS304,Hole size:8*8mm

7. Performance in line with European standard EN12209,size in accordance with European standard DIN18251, CE certification level (EN12209):3x910G2BB20

Fire resistance test (standard EN1634-1): 240 minutes (steel door),wooden door 120 minutes (wooden door)



Introduction

EN12209 CE Anti-thrust Night Latch Mortise Lock with Escape Function

▶Technical Specifications

1. Distance:72mm,Backset:55/60/65mm

2. Lock shell:zinc steel SECC,thickness:1.5mm

3. Latch bolt:SUS304(Durability: 200,000 test cycles, 120N side pressure)

4. Insurance bolt:SUS304

5. Front Plate:SUS304,Size:235*24/22/20mm,thickness:3mm,Strike plate:SUS304,thickness:1.5mm

6. Spindle:SUS304,Hole size:8*8mm

7. Performance in line with European standard EN12209,size in accordance with European standard DIN18251, CE certification level (EN12209):3x910G2BB20

Fire resistance test (standard EN1634-1): 240 minutes (steel door),wooden door 120 minutes (wooden door)

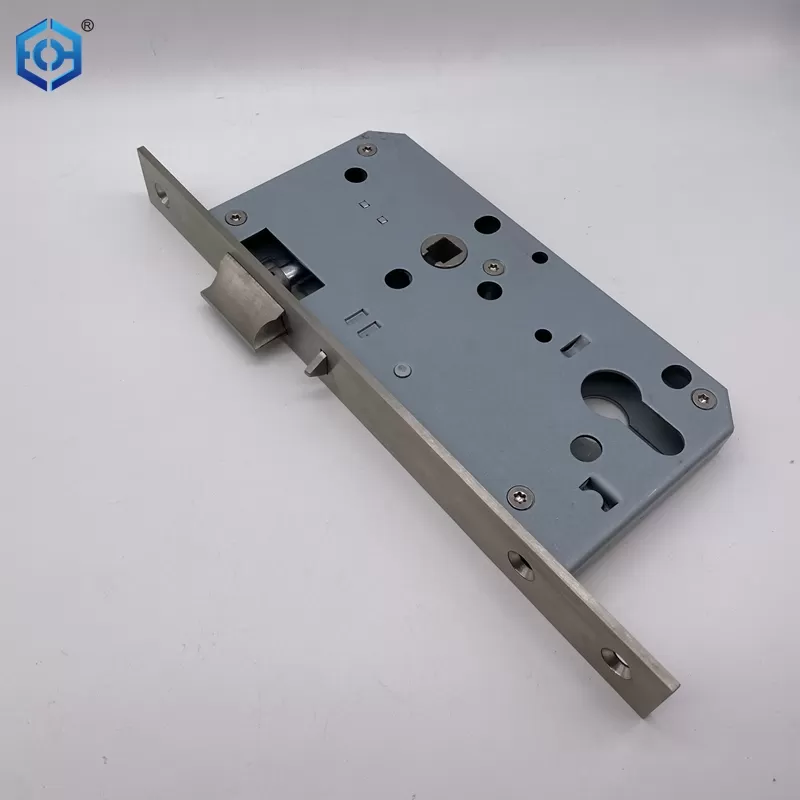

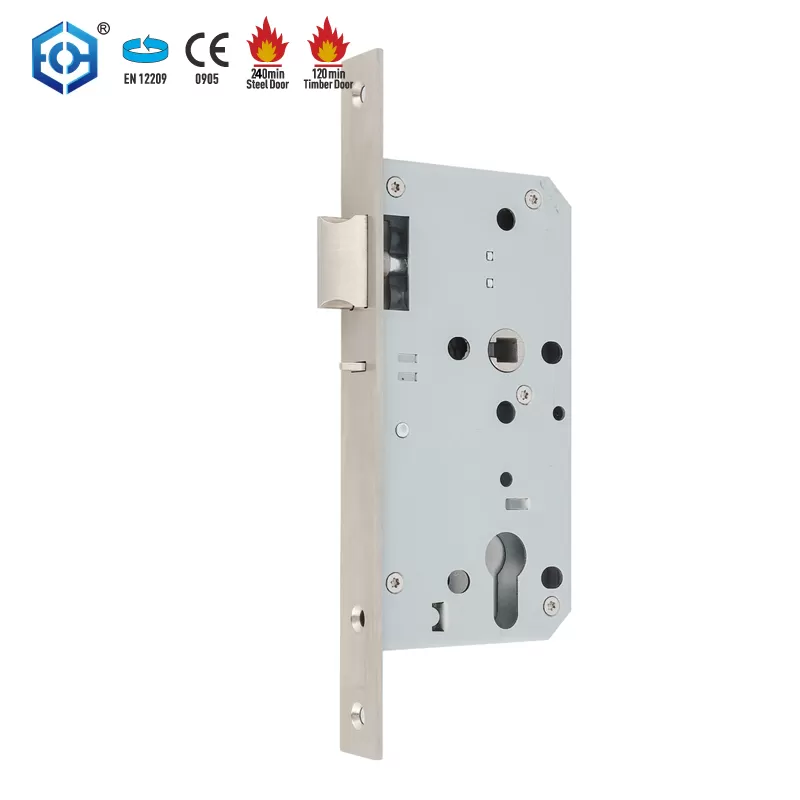

Night Latch Mortise Lock


Our European standard mortise locks are designed for high-frequency use and potential misuse applications (Grade 3 category), delivering exceptional performance, safety, and functionality. Carefully crafted from high-quality materials, these mortise locks ensure durability and reliability even in demanding environments. Our locks are suitable for both wooden and steel fire doors, ensuring your fire safety needs.

The fire rated night latch mortise door lock features a safety latch that automatically locks upon closing. Exiting from the inside is unrestricted, while entry from the outside requires a key. This euro profile cylinder mortice night latch lock is ideal for rooms that require a certain level of privacy, such as operating rooms and conference rooms.



Features

  • CE Certified

  • Tested for 200,000 cycles, low maintenance, extended service life

  • Easy reversible latch

  • Suitable for wooden and steel fire doors

  • Forend and strike plate available in round and square head styles

  • Compatible with standard lever handles and profile cylinders

  • High-quality satin stainless steel finish, additional surface finish options available




Specifications:


Size
Backset

55/60/65mm

Center distance
72mm
Major parts

Forend

SS304, Height: 235mm, Width: 20/24mm,

Thickness: 3mm

LatchSS304
Follower

SS304, Square hole: 8*8mm

Locking plate

SS304, Thickness: 1.5mm

Case

SECC, Thickness: 1.5mm

Standard
EN12209, EN1634-1, DIN18251
Certification

CE (Intertek)

3 X 9 1 0 G - B 0 2 0

CE (Warrington)3 X 8 1 0 G - H G 2 0

Fire test (EN1634-1)

Steel fire door: 240mins

Timber fire door: 90mins

(Intertek)

Steel fire door: 240mins

Timber fire door: 30/60/90/120mins

(Warrington)

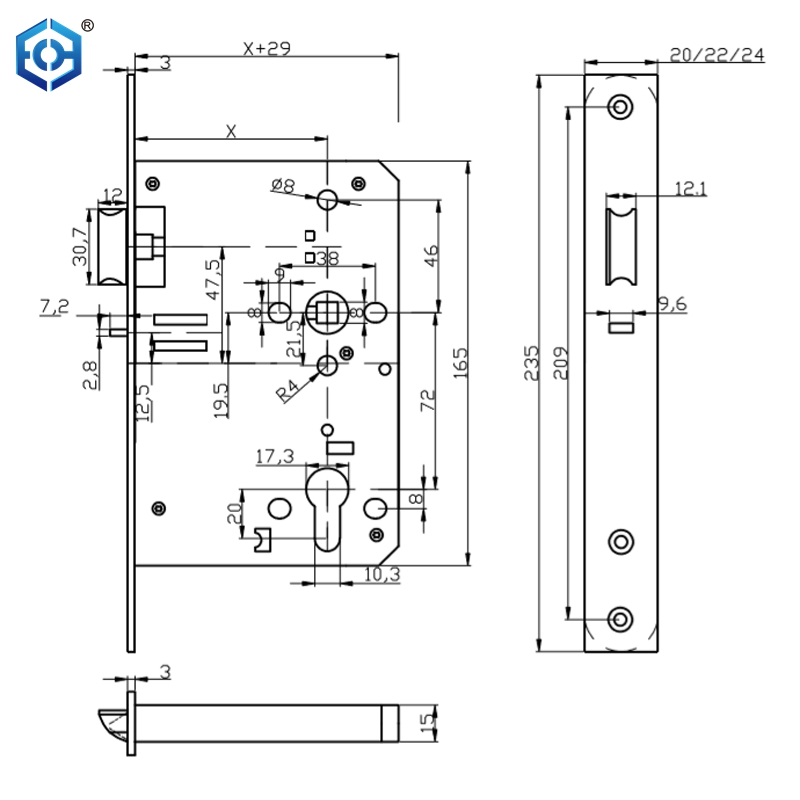

Size

X=55/60/65mm

EN12209 CE Anti-thrust Night Latch Mortise Lock with Escape Function
