ECH-J5572Z ECH-J6072Z ECH-J6572Z ECH-J7072Z ECH-J8072Z

▶Technical Specifications

1. Distance:72mm,Backset:50/55/60/65/70/80mm

2. Lock shell:zinc steel SECC,thickness:1.5mm

3. Latch bolt:SUS304(Durability: 200,000 test cycles, 120N side pressure)

4. Dead bolt:SUS304(Durability: 50,000 test cycles),two lock

5. Front Plate:SUS304,Size:235*24/22/20mm,thickness:3mm,Strike plate:SUS304,thickness:1.5mm

6. Spindle:SUS304,Hole size:8*8mm

7. Performance in line with European standard EN12209,size in accordance with European standard DIN18251,

 CE certification level (EN12209): 3x910G3BC20

Fire resistance test (standard EN1634-1): 260 minutes (steel door),wooden door 111 minutes (wooden door)

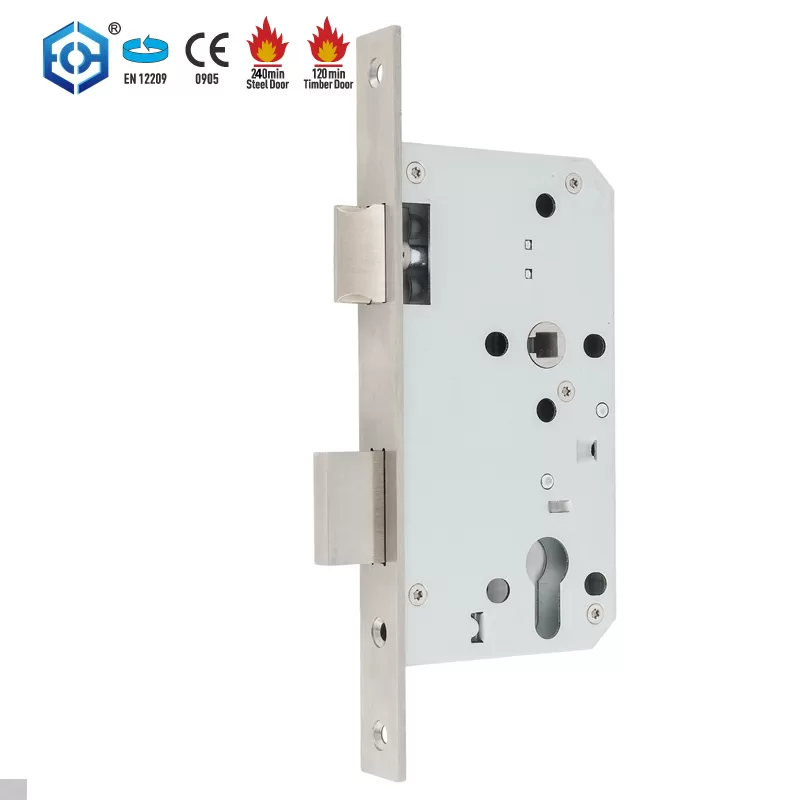

▶CE Mortise Lock

Our European standard mortise locks are designed for high-frequency use and potential misuse applications (Grade 3 category), delivering exceptional performance, safety, and functionality. Carefully crafted from high-quality materials, these euro profile mortise locks ensure durability and reliability even in demanding environments. Our locks are suitable for both wooden and steel fire doors, ensuring your fire safety needs.

This CE marked mortise sash lock is the most widely used mortise locks in public buildings,such as shopping centers, hospitals, schools, airports. Door handle only operate latch, and profile cylinder operate latch and deadbolt. The latch can be easily reversed to accommodate both left and right-handed doors.

▶Features

• CE Certified

• Tested for 200,000 cycles, low maintenance, extended service life

• Easy reversible latch

• Suitable for wooden and steel fire doors

• Forend and strike plate available in round and square head styles

• Compatible with standard lever handles and profile cylinders

• High-quality satin stainless steel finish, additional surface finish options available

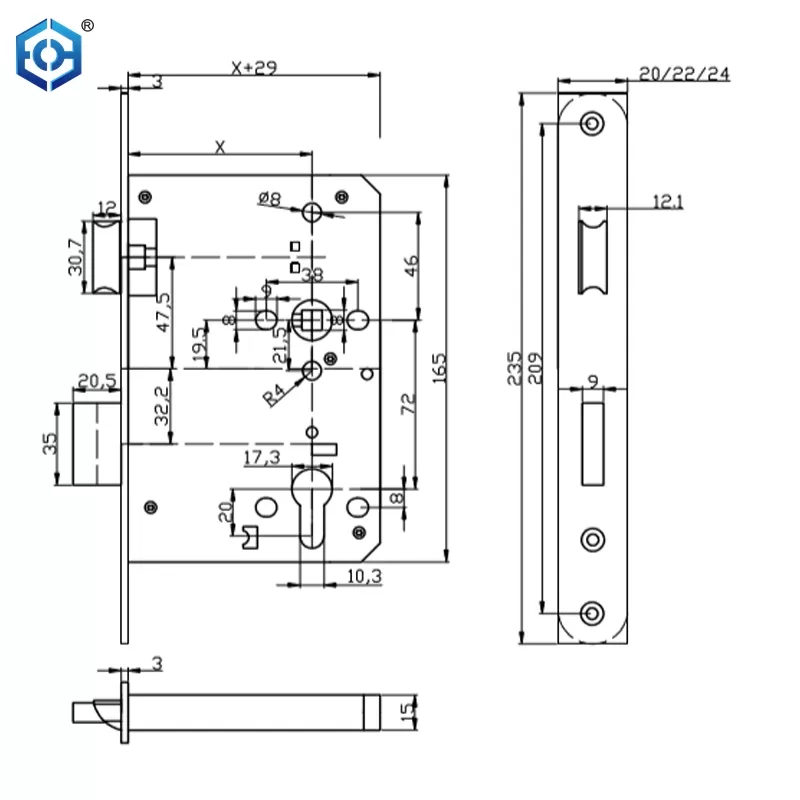

▶Specifications:

X=55/60/65/70/80mm
